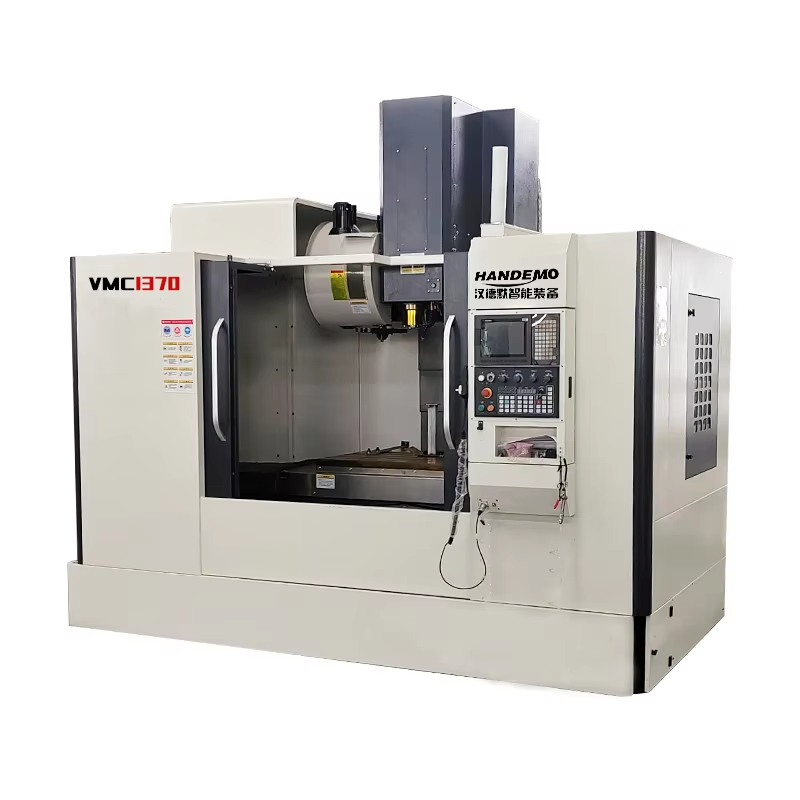

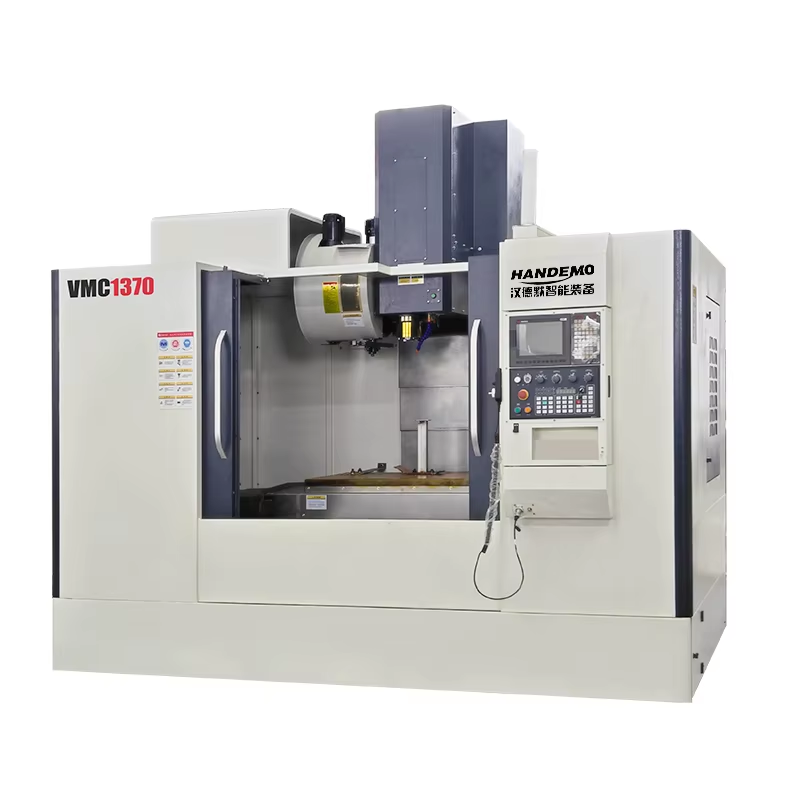

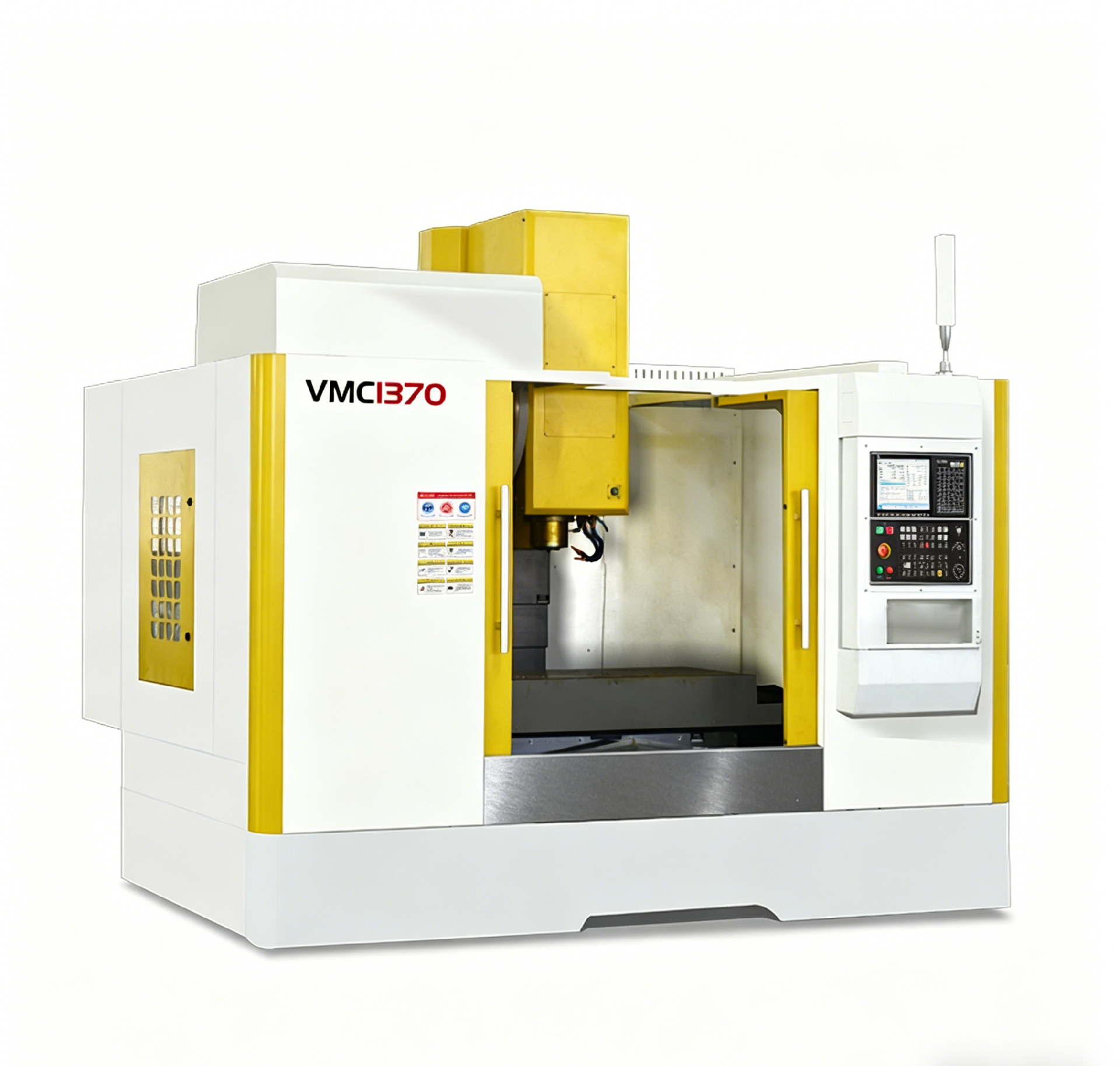

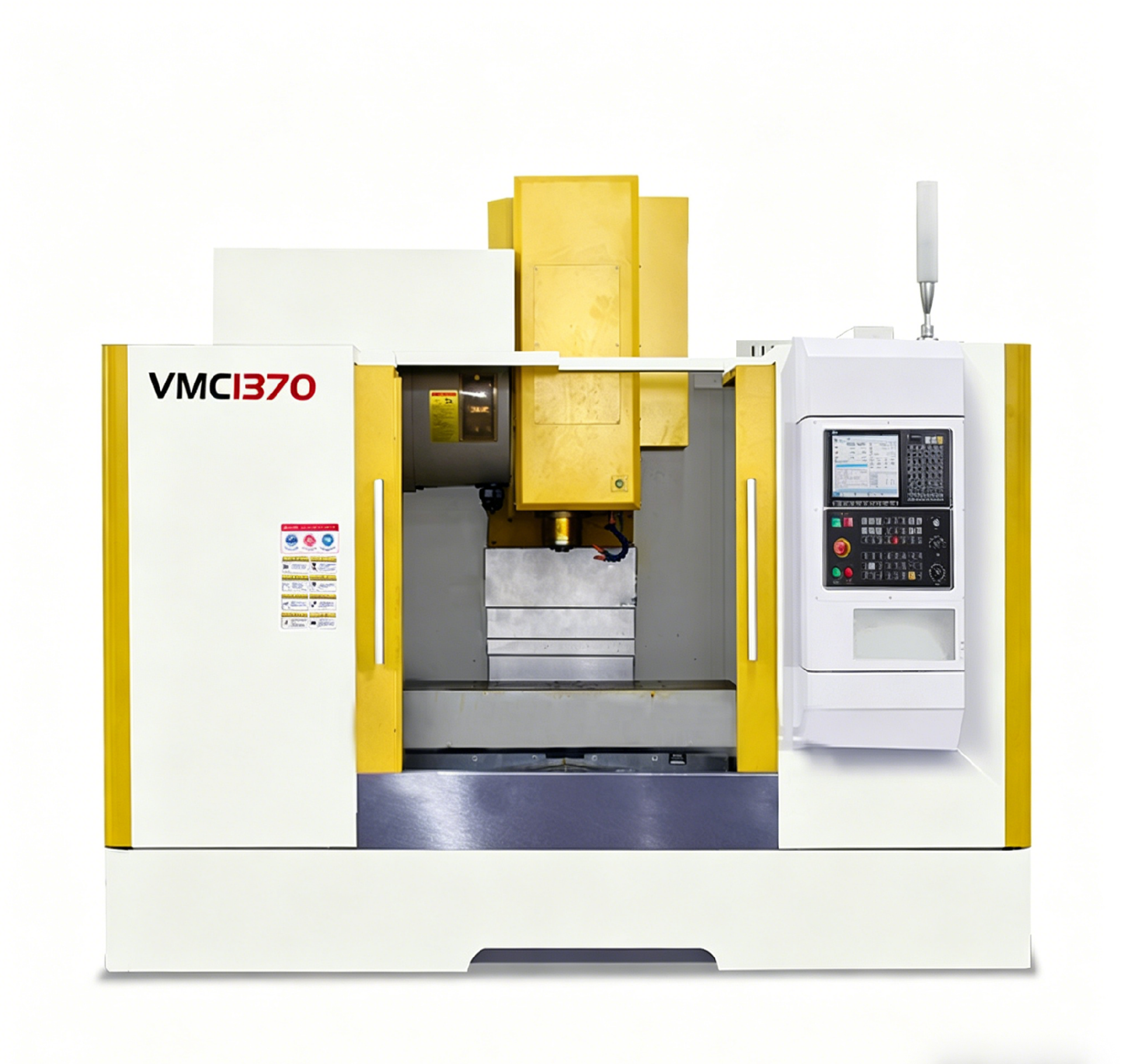

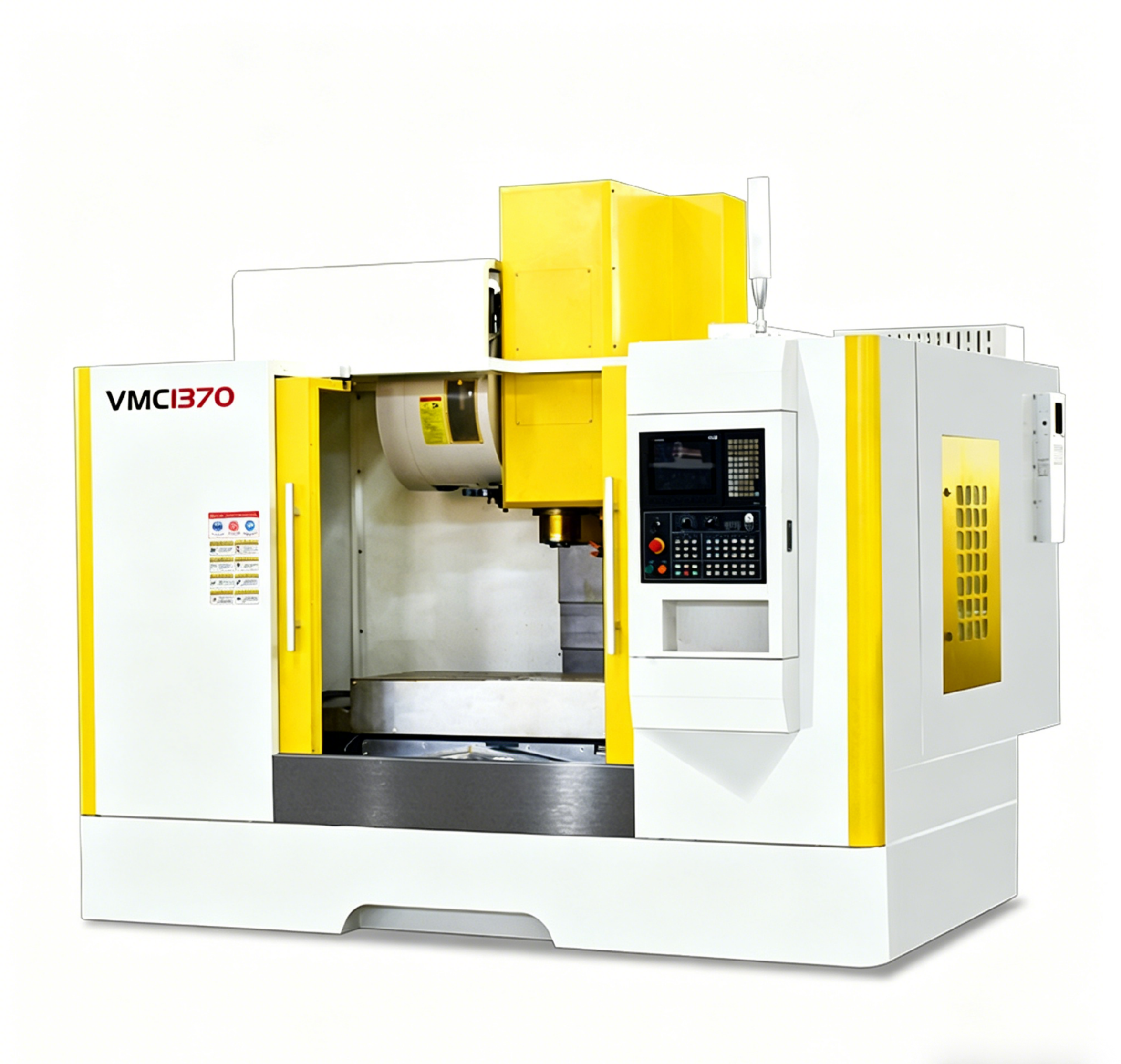

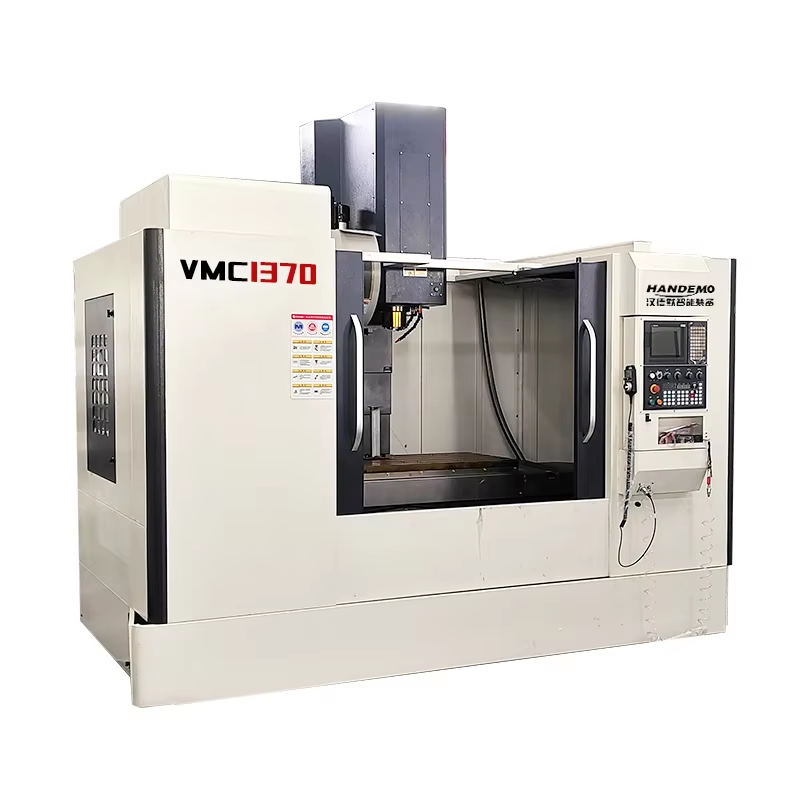

VMC1370 Vertical Machining Center
Vertical Machining Centers / Heavy-Duty Vertical Machining Centers
* This machine tool has a stable bed structure and uses "meter" shaped reinforcement ribs to enhance the stability of the bed.
* This machine tool is a large stroke, high-precision CNC machine tool
* Standard configuration includes a 15KW motor or an 11KW low-speed high torque motor, with 55 types of three-axis guide rails, providing stronger load-bearing capacity.
* This machine tool is a large stroke, high-precision CNC machine tool
* Standard configuration includes a 15KW motor or an 11KW low-speed high torque motor, with 55 types of three-axis guide rails, providing stronger load-bearing capacity.
Technical Specifications
Product Details Parameters
Product Details
Key Features
Rigid Box-Way Structure for Heavy Cutting

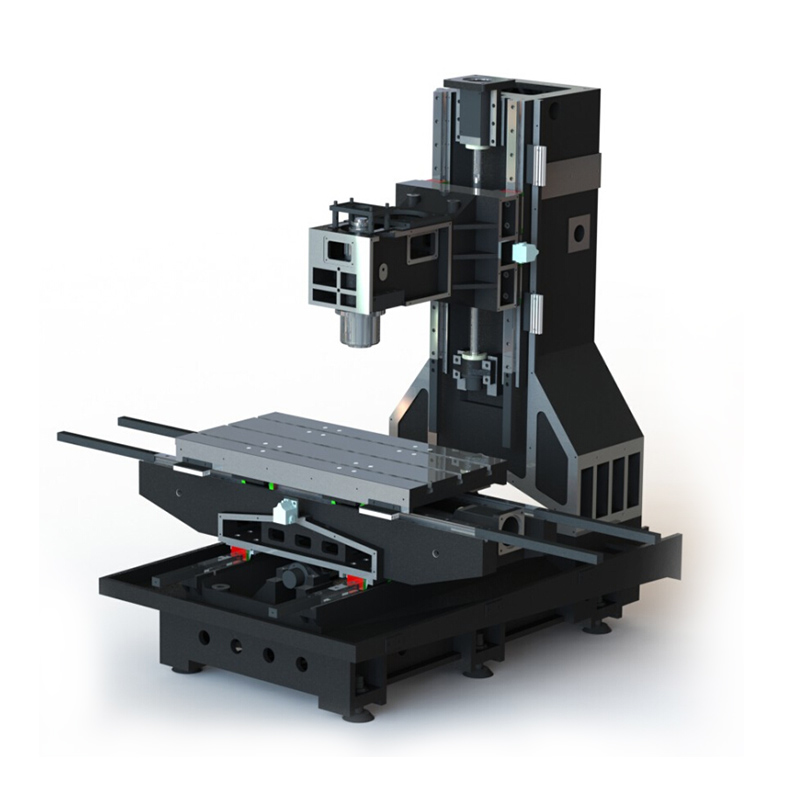

The VMC1370 is built with a reinforced bed and column using a "米" (grid) rib layout that strengthens the main body, delivering stable cutting for medium-large molds, dies and machine parts.
Generous Work Envelope

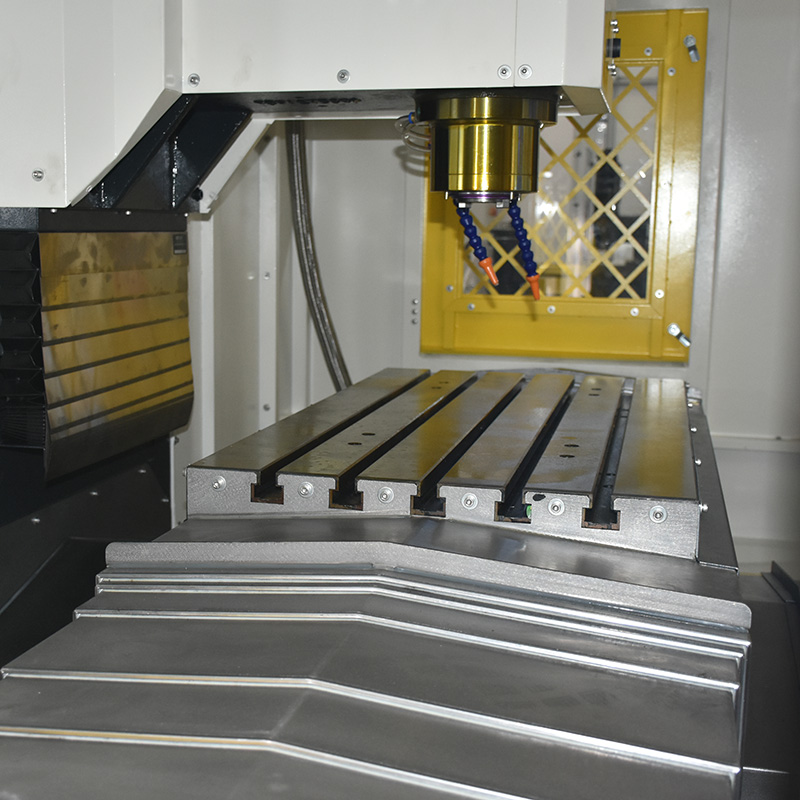

X/Y/Z travel of 1300/700/750 mm and a 1400×700 mm table handle large plates, mold bases and multi-feature housings that exceed the capacity of smaller VMC models.
Reliable Spindle and Drive System

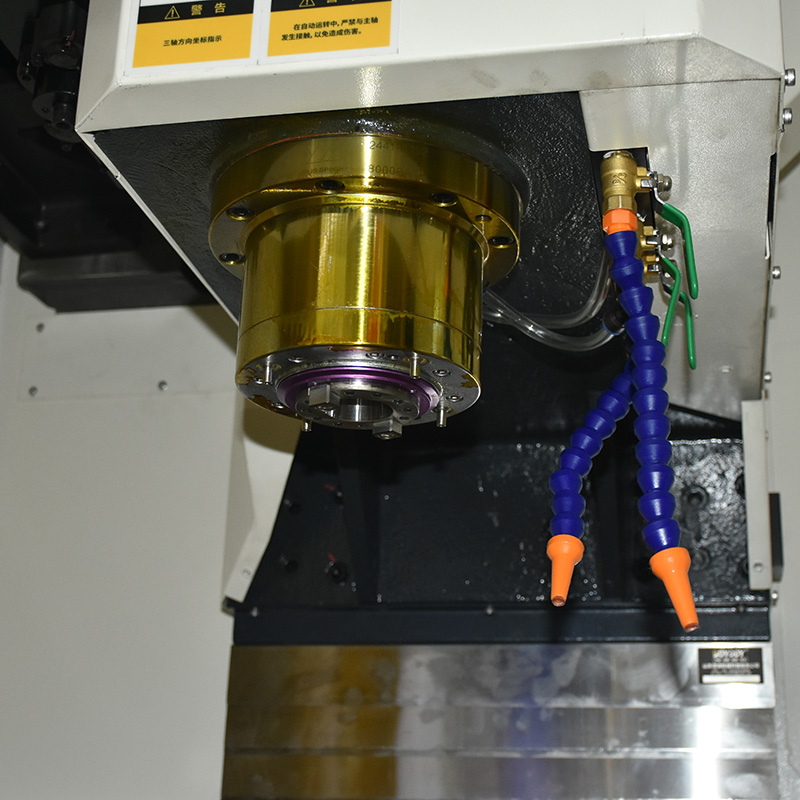

A high-torque spindle (up to 8000 rpm) with rigid tapping support provides dependable performance for both roughing and finishing.
Fast Axis Response
24 m/min rapid traverse on X/Y and 18 m/min on Z shortens non-cutting time and improves overall productivity.
Why Choose the VMC1370?
Choose the VMC1370 when your workpieces exceed the 1100 mm X-travel of a VMC1160 but do not yet justify the larger VMC1560. It is the most balanced choice for mold plates up to 1400 mm, medium die components and general machinery parts that need 800 kg table capacity with strong rigidity.
Primary Applications
The VMC1370 is widely used for mold and die plates, medium-sized brackets and housings, valve bodies and general mechanical parts across automotive, energy and general manufacturing.
Product Parameters
| Specifications | VMC1370 |
| Table size （mm） | 1400×700 |
| Max. worktable load（kg） | 800 |
| T-slot (number*width*distance) | 5-18-130 |
| X-axis travel(mm) | 1300 |
| Y-axis travel(mm) | 700 |
| Z-axis travel(mm) | 750 |
| X-axis Fast shift speed(m/min) | 24 |
| Y-axis Fast shift speed(m/min) | 24 |
| Z-axis Fast shift speed(m/min) | 18 |
| Spindle taper hole | BT40-150 |
| Spindle speed (rpm) | 8000 |
| Machine size (mm) | 3550L*2730W*2620H |
| Machine weight (KG) | 9000 |
Get a Quote for Your Application
Need a CNC machine tailored to your production line? Contact Handemo CNC for a detailed quote, technical support, and fast delivery worldwide.
Contact Handemo CNC now or email sales1@handemocnc.com / WhatsApp +86 135 6320 3038.
FAQs
Frequently Asked Questions
What is the minimum order quantity for this machine?
We accept orders from 1 unit. Each machine is manufactured to order with full quality inspection, and lead time depends on the model and customization requirements. Contact our sales team for current lead times.
Can the machine be customized for my application?
Yes. Handemo offers customization including spindle options, CNC control systems (Fanuc, Siemens, GSK or others), automation integration, 4th/5th axis configurations, chip conveyors and special tooling. Tell us your workpiece requirements and we will propose the best configuration.
Do you provide installation and training?
Yes. We provide on-site installation and commissioning, operator training, and technical documentation. Remote video support is also available for troubleshooting and optimization after delivery.
What is your warranty policy?
Standard warranty covers the machine tool for 12 months from installation, including spare parts support. Extended warranty and preventive maintenance programs are available on request.
How do you ship the machine and how long does delivery take?
We export worldwide by container or break-bulk shipping with professional packing. Delivery time depends on the destination country and the model ordered. Our export team manages the full logistics process including customs documentation.
Can I visit the Handemo factory before ordering?
Certainly. Customers are welcome to visit our factory in Shandong, China for machine inspection, cutting tests and face-to-face discussion. We regularly host international customers from more than 150 countries.
