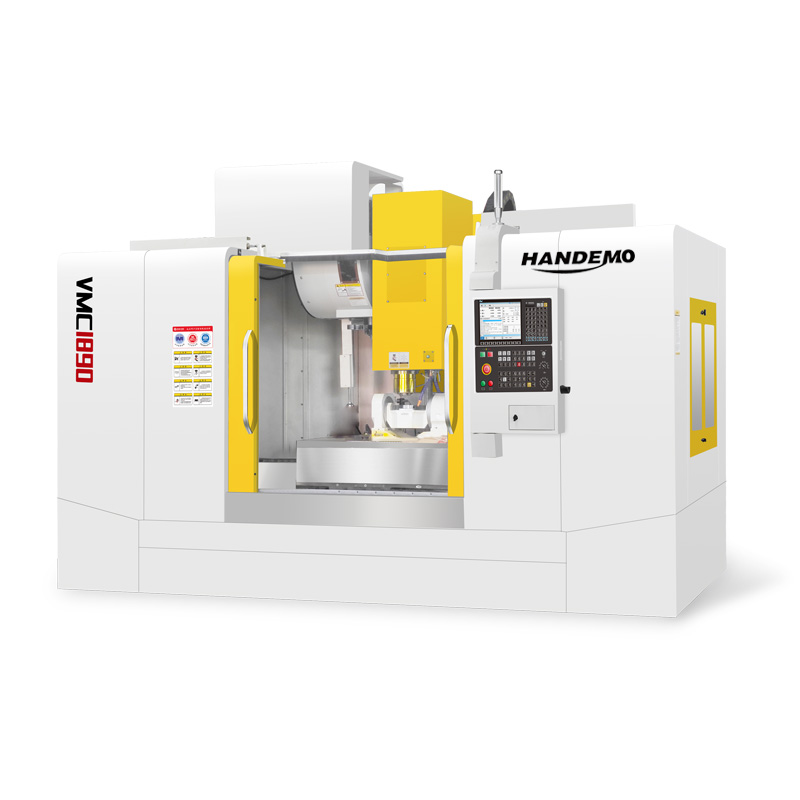

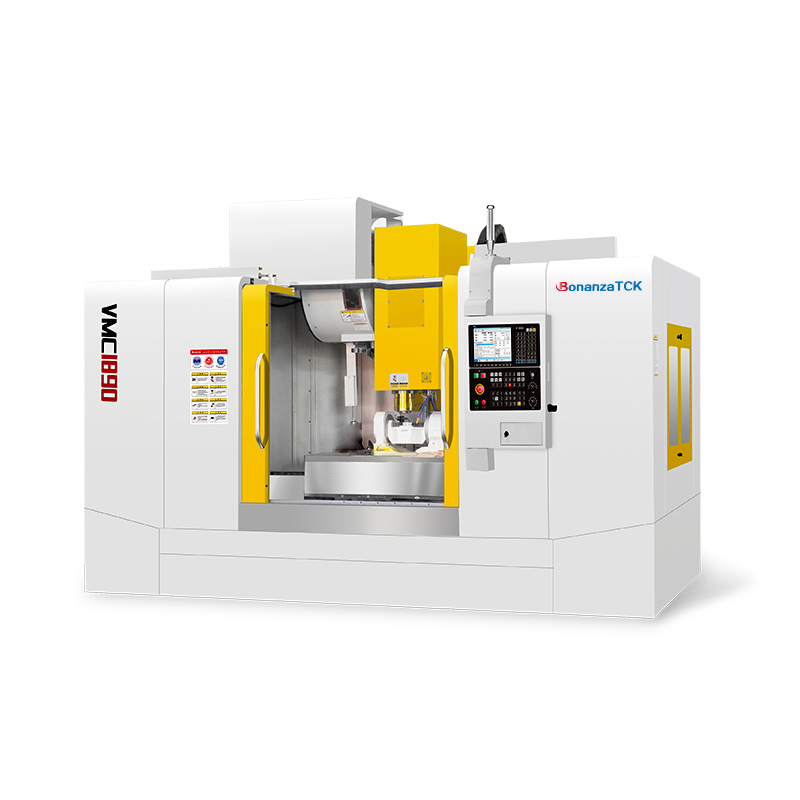

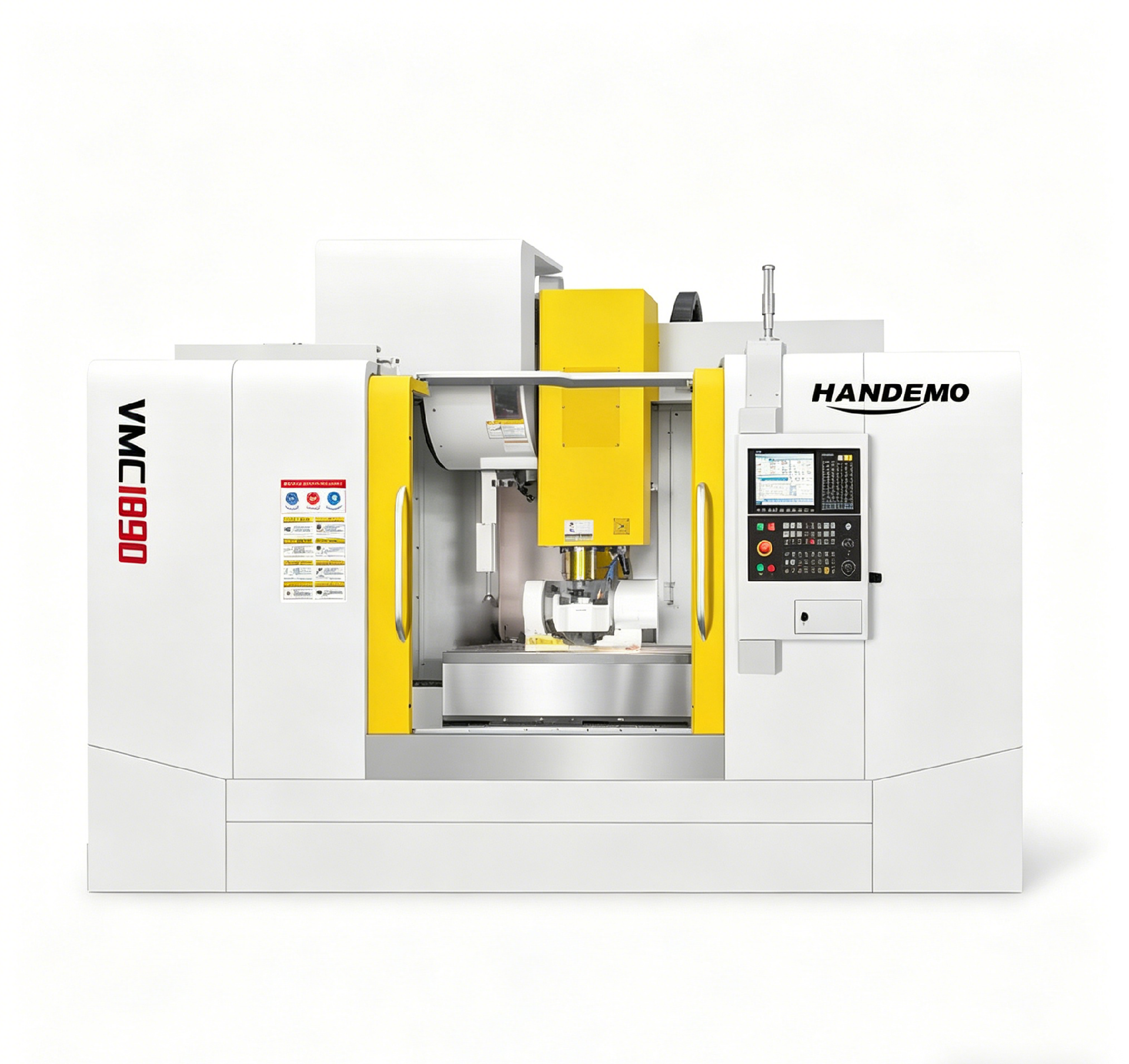

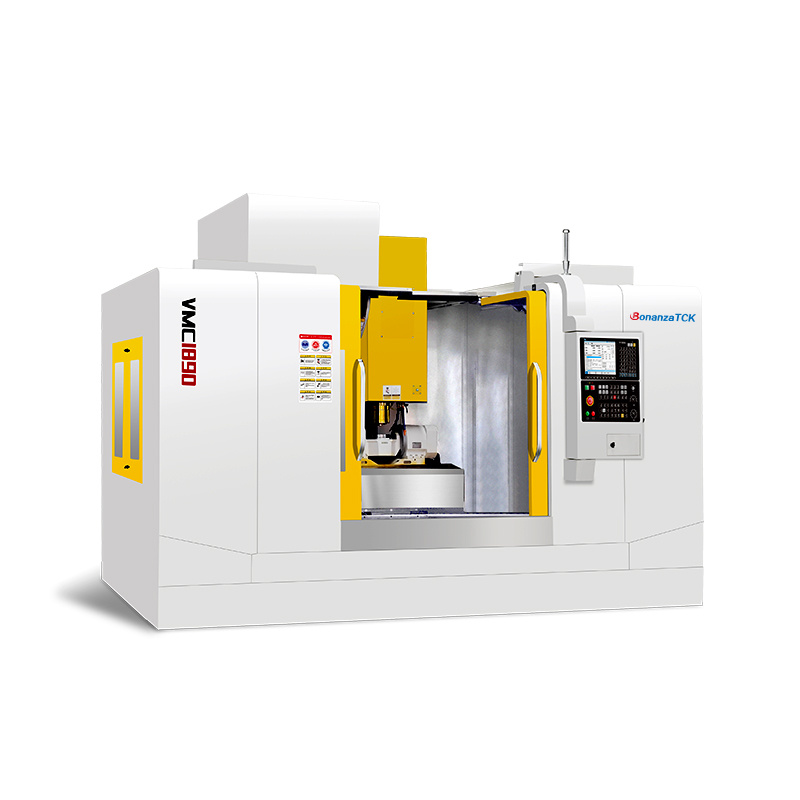

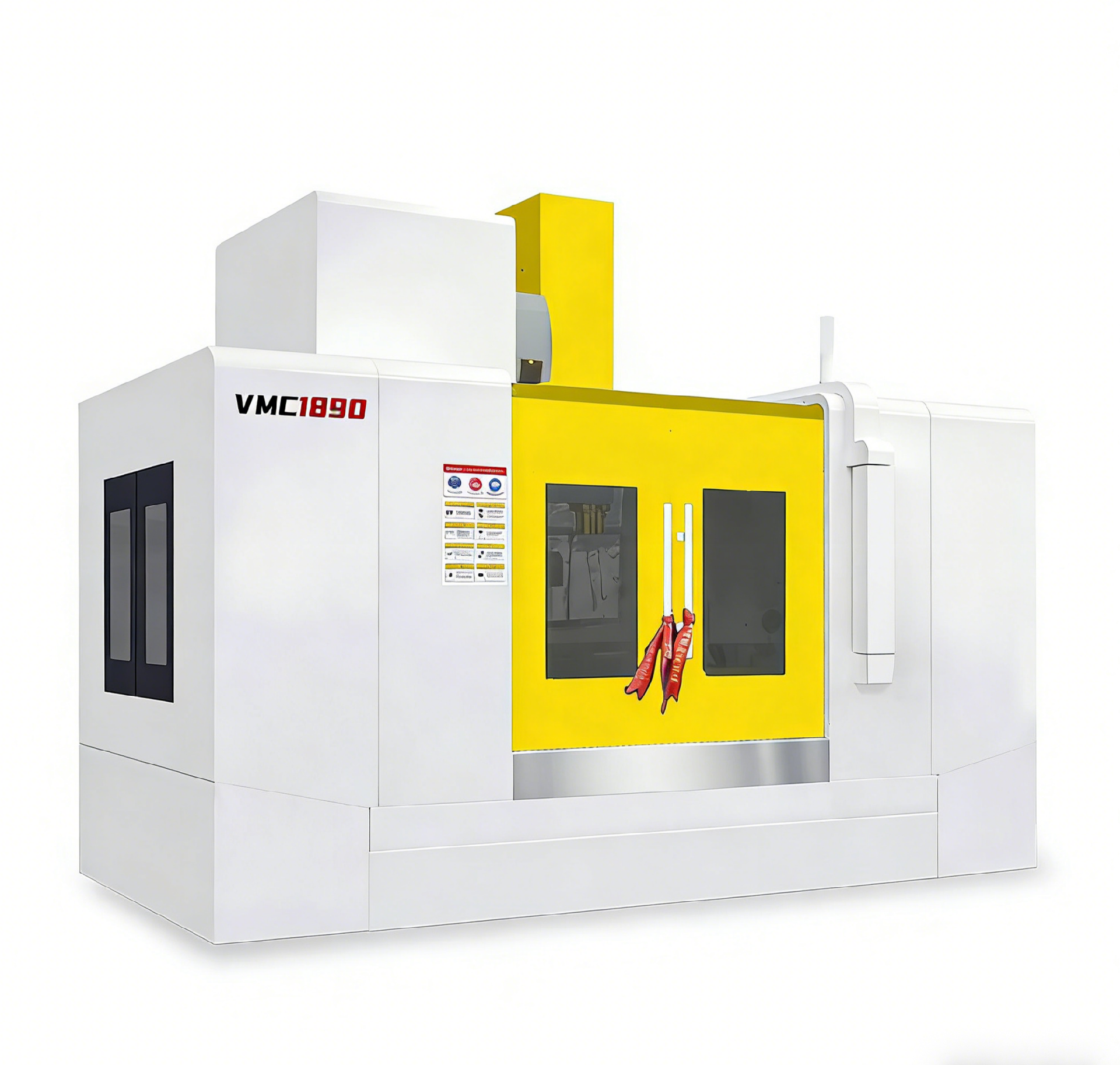

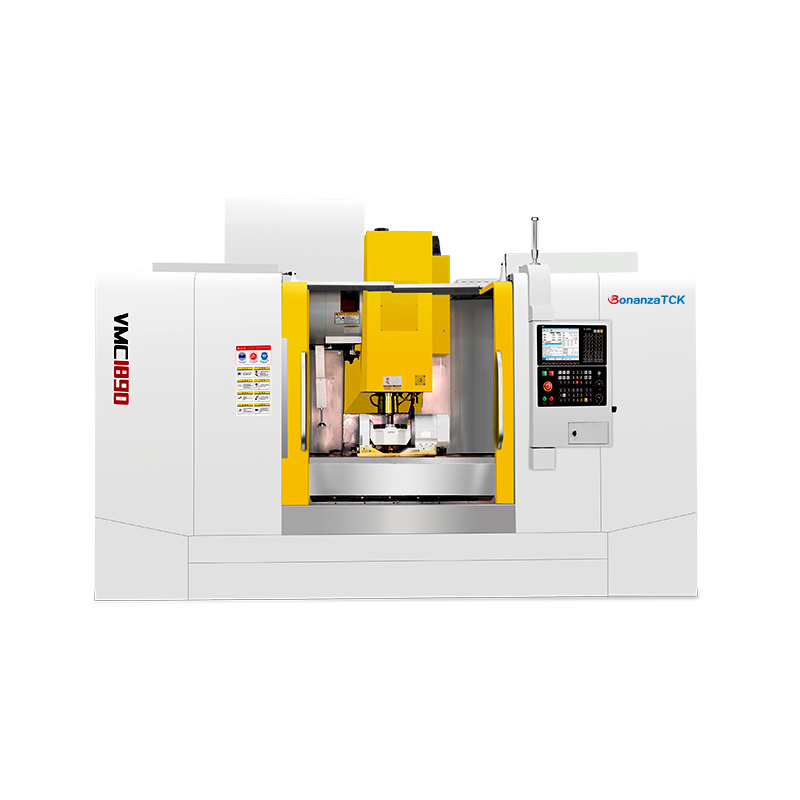

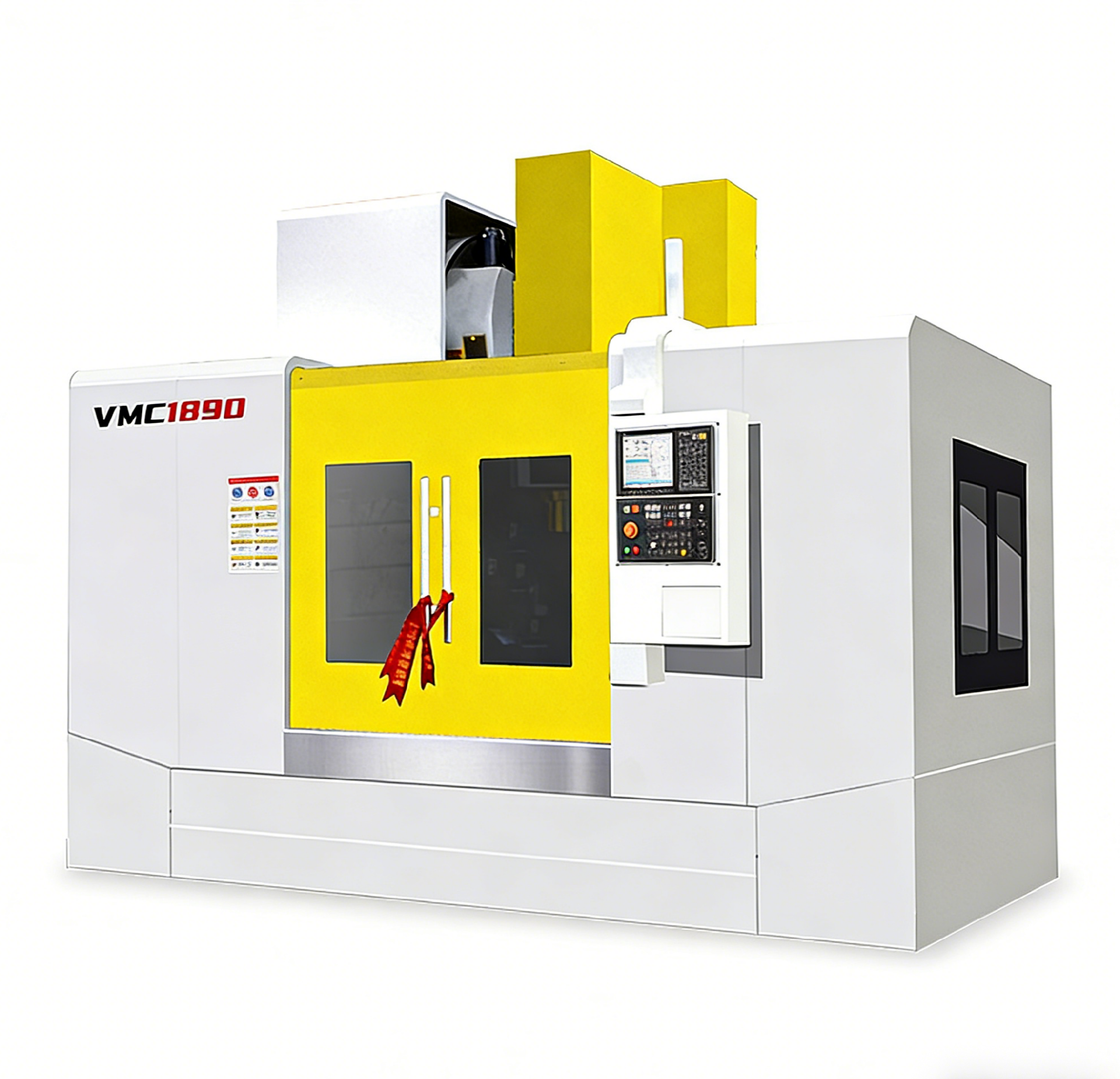

VMC1890 Vertical Machining Center
Vertical Machining Centers / Heavy-Duty Vertical Machining Centers
* Has high machine tool accuracy and repetitive positioning accuracy, and can achieve precision machining.
* Has a large stroke and cutting ability, capable of processing large-sized workpieces.
* Equipped with multi axis control function, capable of cutting in multiple directions simultaneously, improving machining efficiency and accuracy.
* Has a large stroke and cutting ability, capable of processing large-sized workpieces.
* Equipped with multi axis control function, capable of cutting in multiple directions simultaneously, improving machining efficiency and accuracy.
Technical Specifications
Product Details Parameters
Product Details
Key Features
Largest VMC Work Envelope
The VMC1890 is Handemo's largest vertical machining center, providing the maximum table size and axis travel for very large plates, molds and machine components.

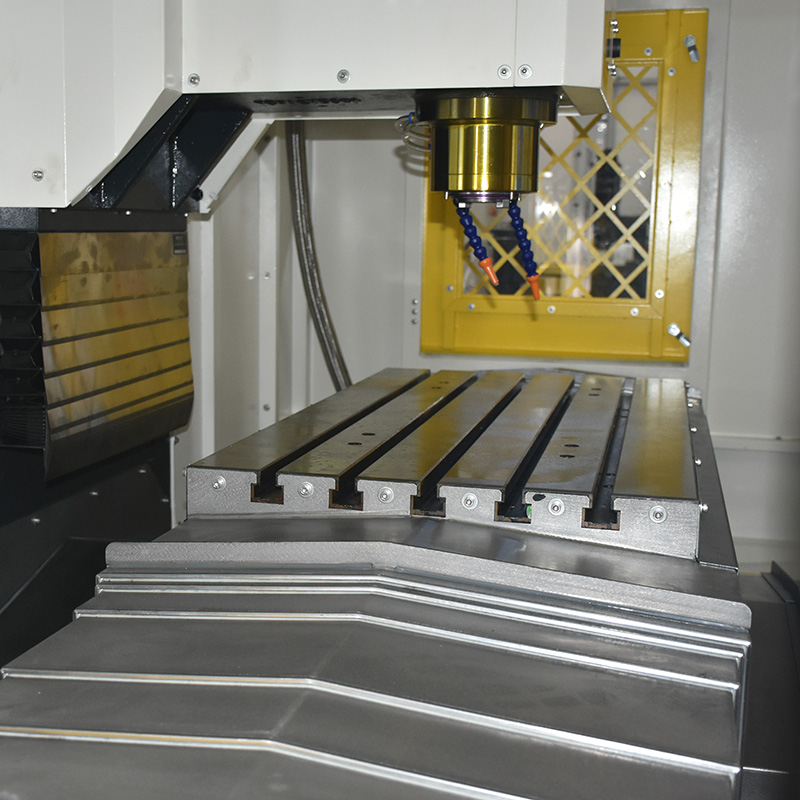

Heavy Load Capacity
Built for large and heavy workpieces with a reinforced base and high-load table, suitable for the biggest jobs in a machine shop.
Heavy-Duty Machining Performance

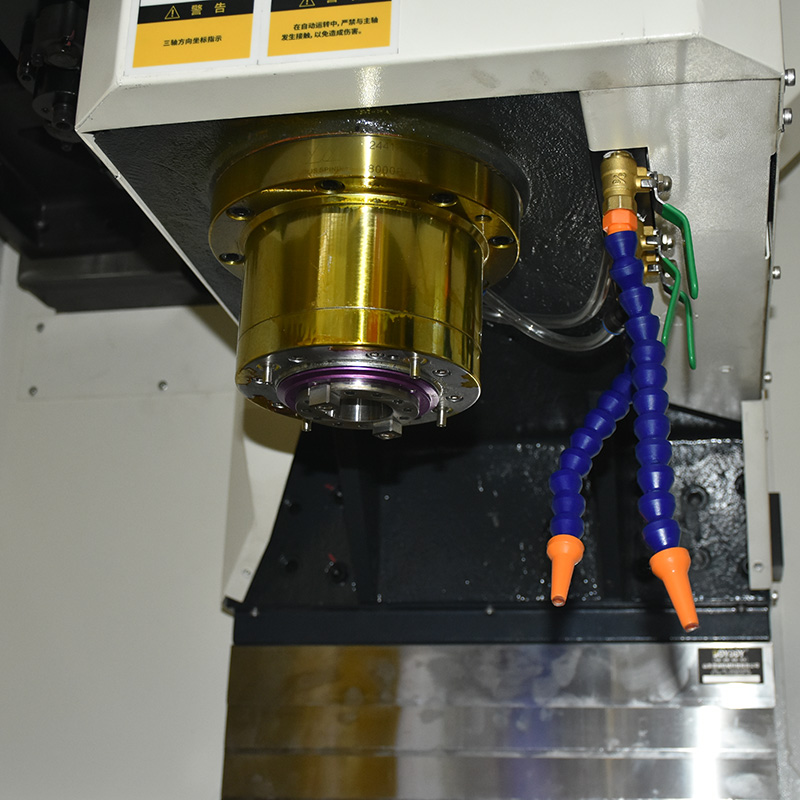

High torque spindle and rigid structure support aggressive roughing of large steel and cast iron parts.
Stable for Long Cuts

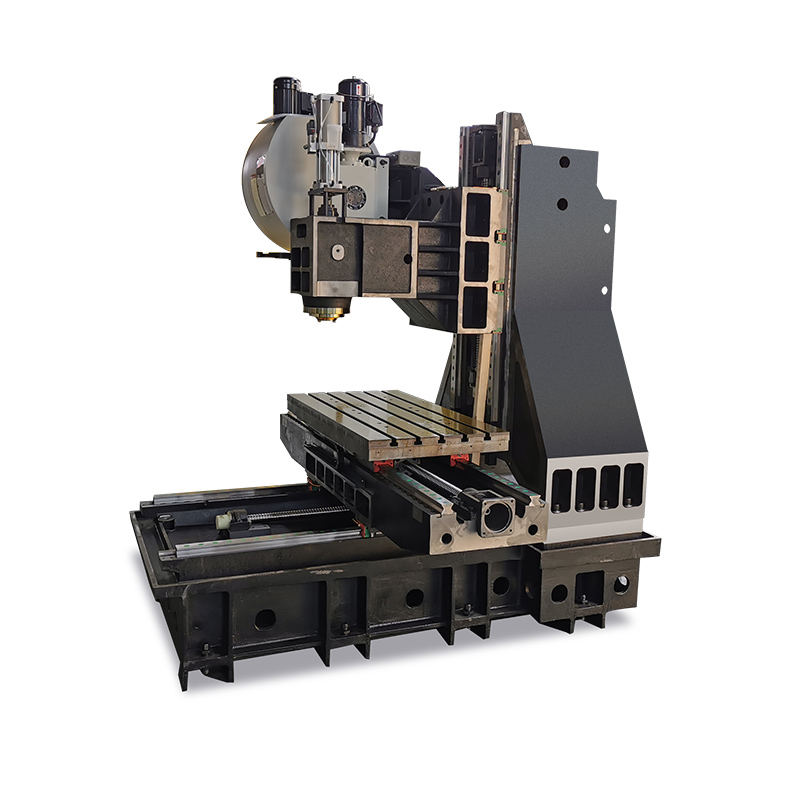

Massive machine weight and grid-reinforced castings absorb vibration, keeping accuracy over long, heavy cuts.
Why Choose the VMC1890?
Choose the VMC1890 when even the VMC1560 is not large enough. It is the flagship VMC for very large plates, big mold bases, machine tool components and heavy energy-sector parts that demand the largest envelope and highest rigidity.
Primary Applications
Very large mold and die plates, machine tool beds and columns, large housings, energy and heavy equipment components.
Product Parameters
| Specifications | VMC1890 |
| Table size （mm） | 2000×900 |
| Max. worktable load（kg） | 1600 |
| X-axis travel(mm) | 1800 |
| Y-axis travel(mm) | 900 |
| Z-axis travel(mm) | 600 |
| X-axis Fast shift speed(m/min) | 20 |
| Y-axis Fast shift speed(m/min) | 20 |
| Z-axis Fast shift speed(m/min) | 15 |
| Spindle taper hole | BT50-190 |
| Spindle speed (rpm) | 6000 |
| Machine size (mm) | 5000L*3000W*2900H |
| Machine weight (KG) | 14000 |
Get a Quote for Your Application
Need a CNC machine tailored to your production line? Contact Handemo CNC for a detailed quote, technical support, and fast delivery worldwide.
Contact Handemo CNC now or email sales1@handemocnc.com / WhatsApp +86 135 6320 3038.
FAQs
Frequently Asked Questions
What is the minimum order quantity for this machine?
We accept orders from 1 unit. Each machine is manufactured to order with full quality inspection, and lead time depends on the model and customization requirements. Contact our sales team for current lead times.
Can the machine be customized for my application?
Yes. Handemo offers customization including spindle options, CNC control systems (Fanuc, Siemens, GSK or others), automation integration, 4th/5th axis configurations, chip conveyors and special tooling. Tell us your workpiece requirements and we will propose the best configuration.
Do you provide installation and training?
Yes. We provide on-site installation and commissioning, operator training, and technical documentation. Remote video support is also available for troubleshooting and optimization after delivery.
What is your warranty policy?
Standard warranty covers the machine tool for 12 months from installation, including spare parts support. Extended warranty and preventive maintenance programs are available on request.
How do you ship the machine and how long does delivery take?
We export worldwide by container or break-bulk shipping with professional packing. Delivery time depends on the destination country and the model ordered. Our export team manages the full logistics process including customs documentation.
Can I visit the Handemo factory before ordering?
Certainly. Customers are welcome to visit our factory in Shandong, China for machine inspection, cutting tests and face-to-face discussion. We regularly host international customers from more than 150 countries.
