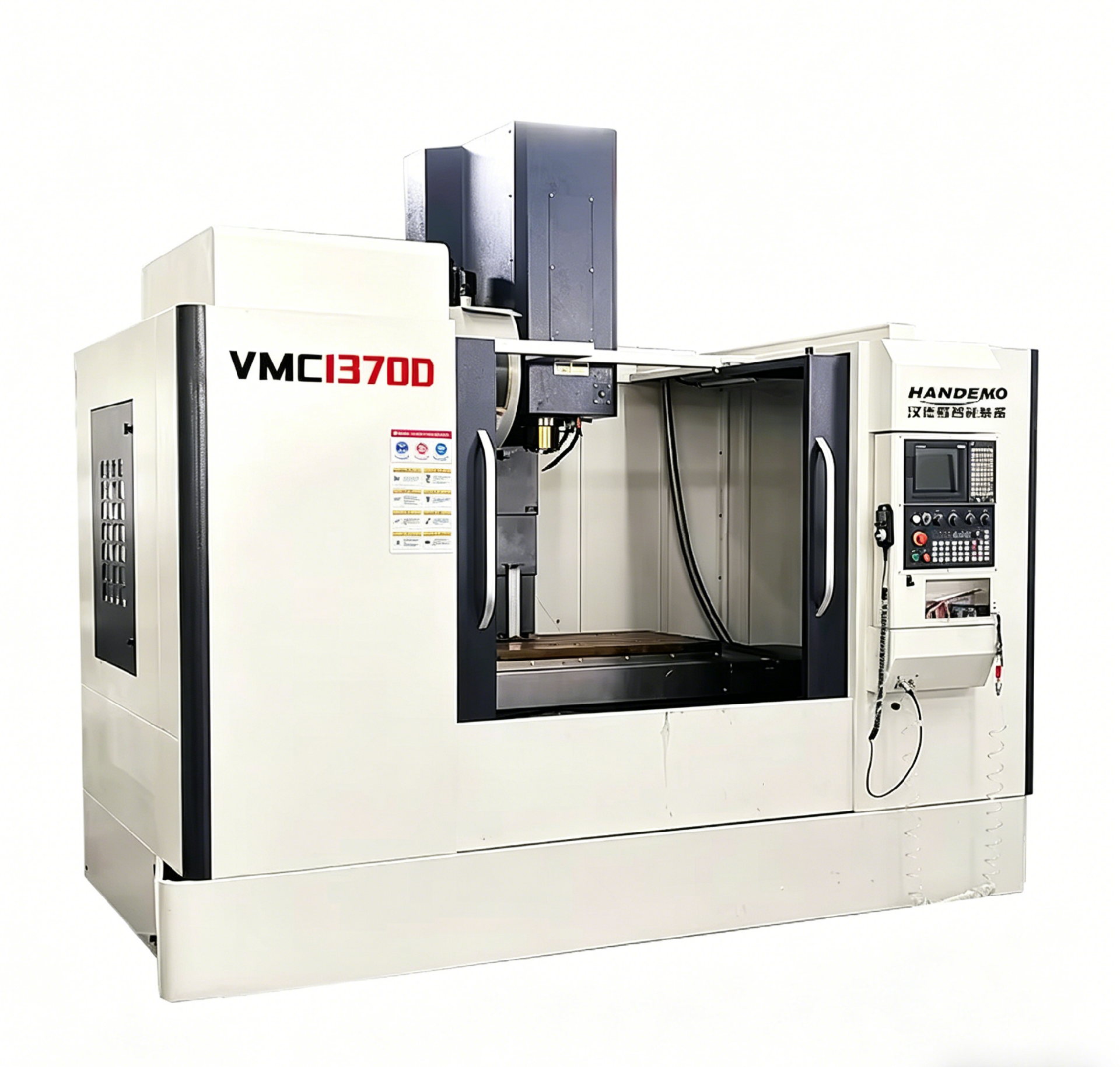

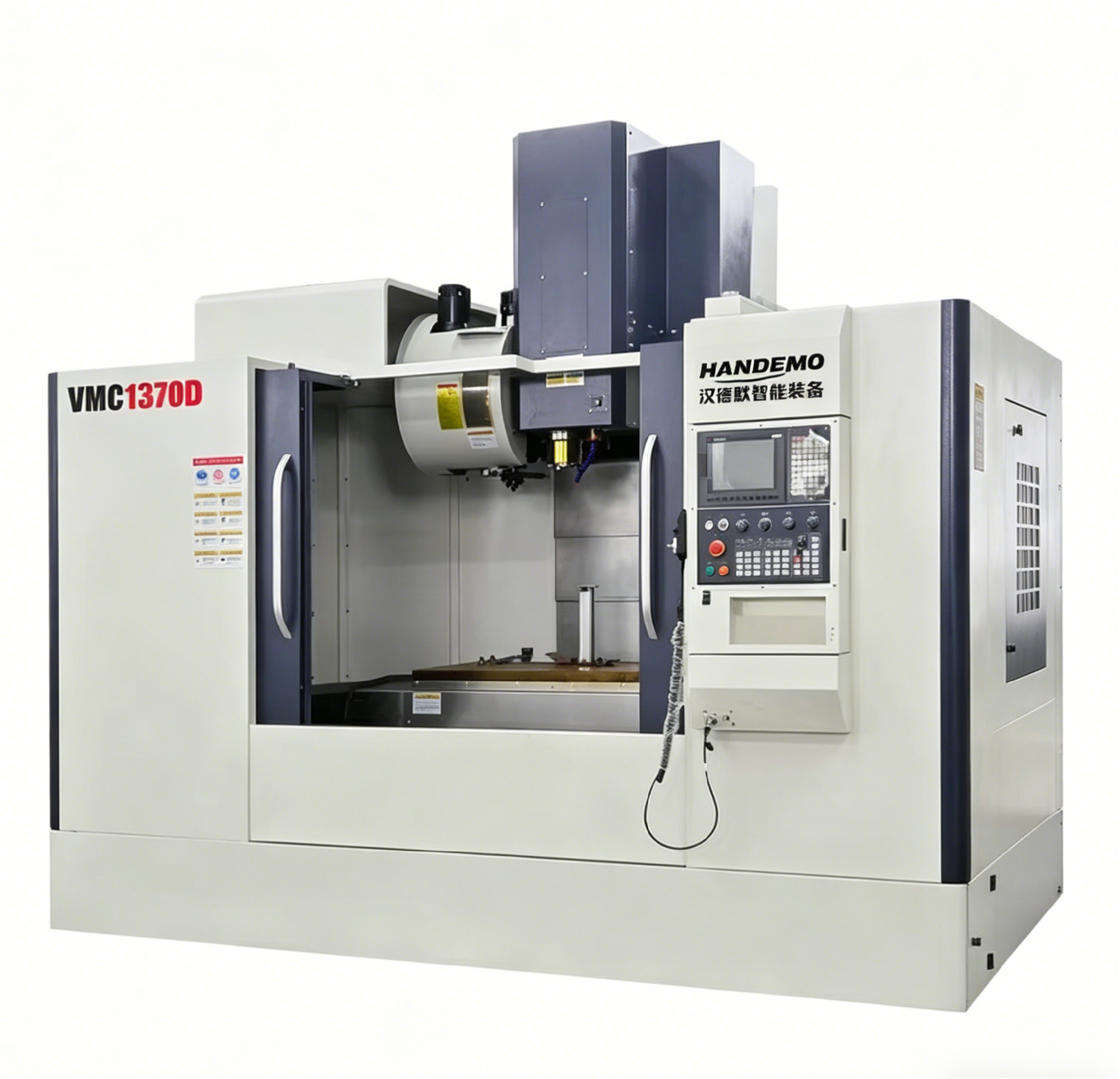

VMC1370D Vertical Machining Center
Vertical Machining Centers / High-Speed Mold Machining Centers

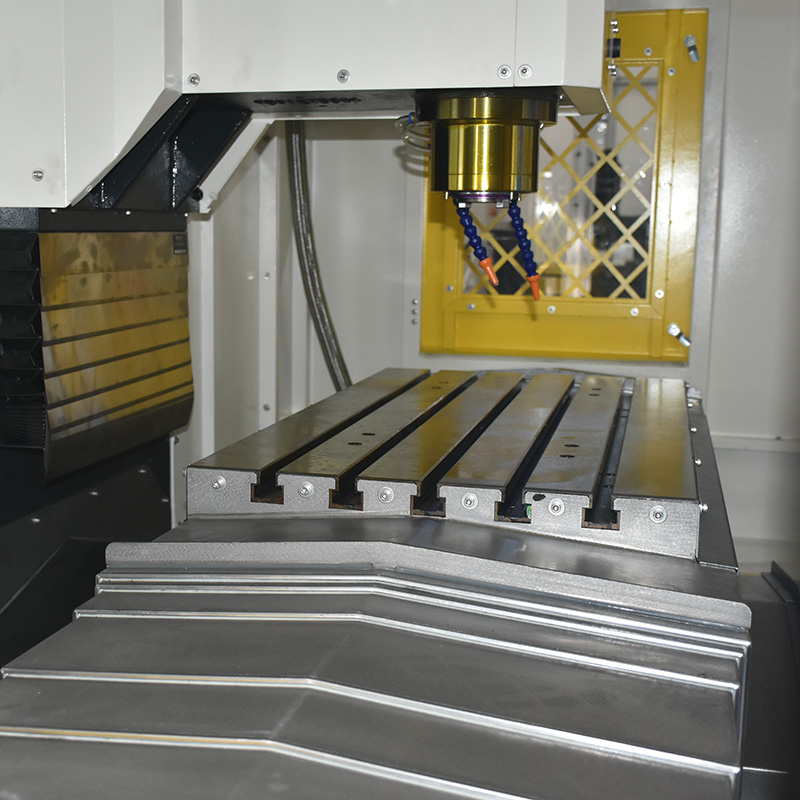

*Table size 1400×700 mm, max. worktable load 800 kg, T-slot 5-18-130 mm

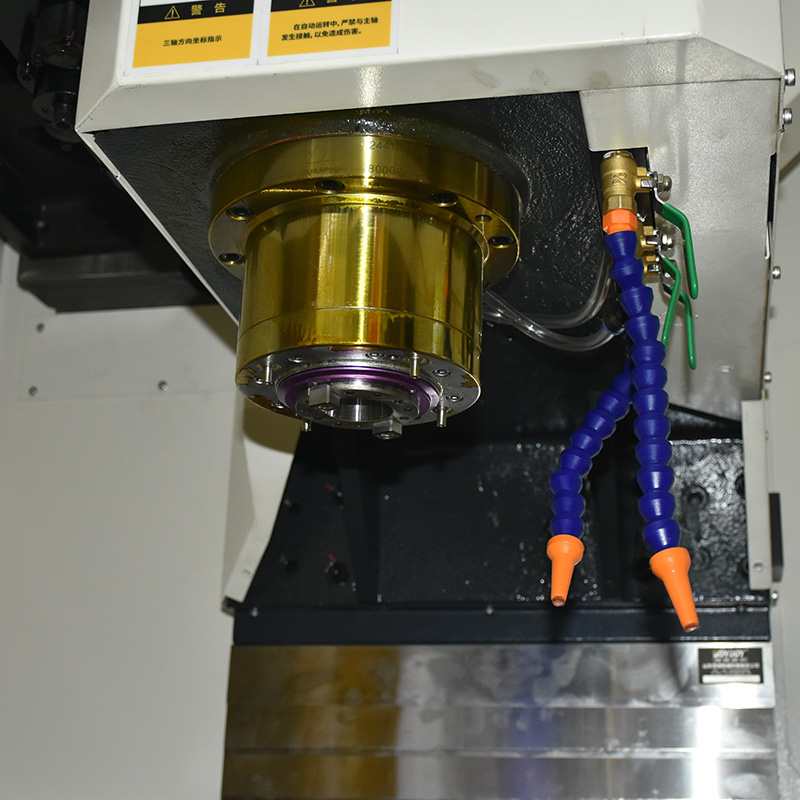

*Spindle taper hole BT40-150, spindle speed 8000 rpm
*X/Y/Z axis travel: 1300/700/750 mm, X/Y rapid shift 24 m/min, Z rapid shift 18 m/min
*Machine size 3550×2730×2620 mm, machine weight 9000 kg
*Spindle taper hole BT40-150, spindle speed 8000 rpm
*X/Y/Z axis travel: 1300/700/750 mm, X/Y rapid shift 24 m/min, Z rapid shift 18 m/min
*Machine size 3550×2730×2620 mm, machine weight 9000 kg
Technical Specifications
Product Details Parameters
Product Details
Key Features
D Series – Enhanced Mold Machining Package
The 1370D is the mold-oriented version of the VMC1370 family, tuned for high-speed precision mold and electrode machining with improved contouring performance.

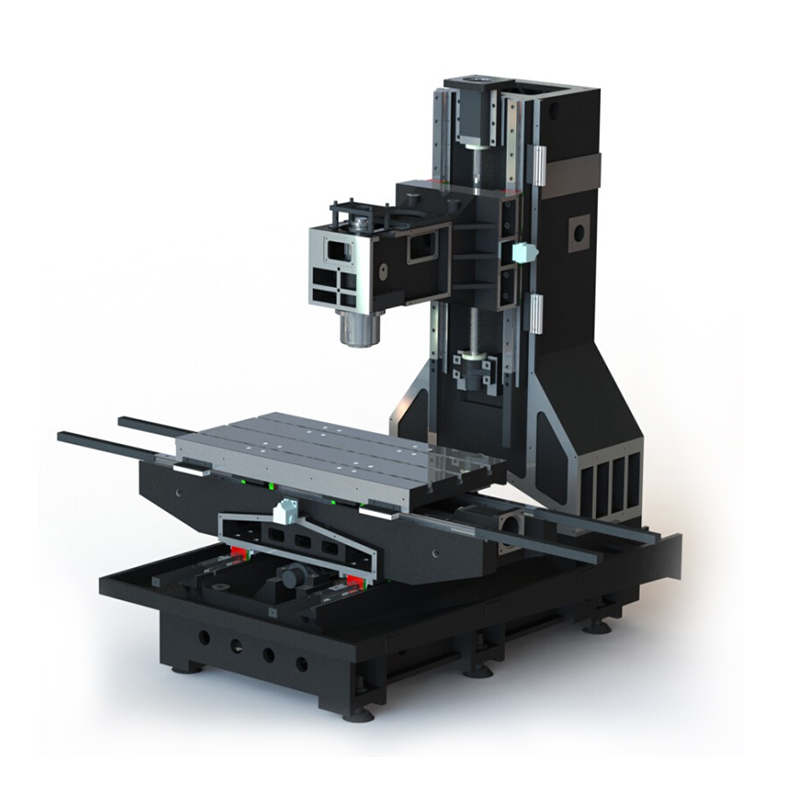

Heavier, More Stable Foundation
The D-series machine body is built heavier than standard models to damp vibration during finishing cuts, improving surface quality on hardened steel and pre-hardened mold materials.
Large Envelope, Fine Finish
1300/700/750 mm travel with a rigid structure supports medium mold machining where dimensional stability and surface finish decide part quality.
Production-Ready for Mold Shops
Configured for frequent program changes and multi-cavity work, the 1370D balances speed and accuracy for mold shops running mixed workloads.
Why Choose the VMC1370D?

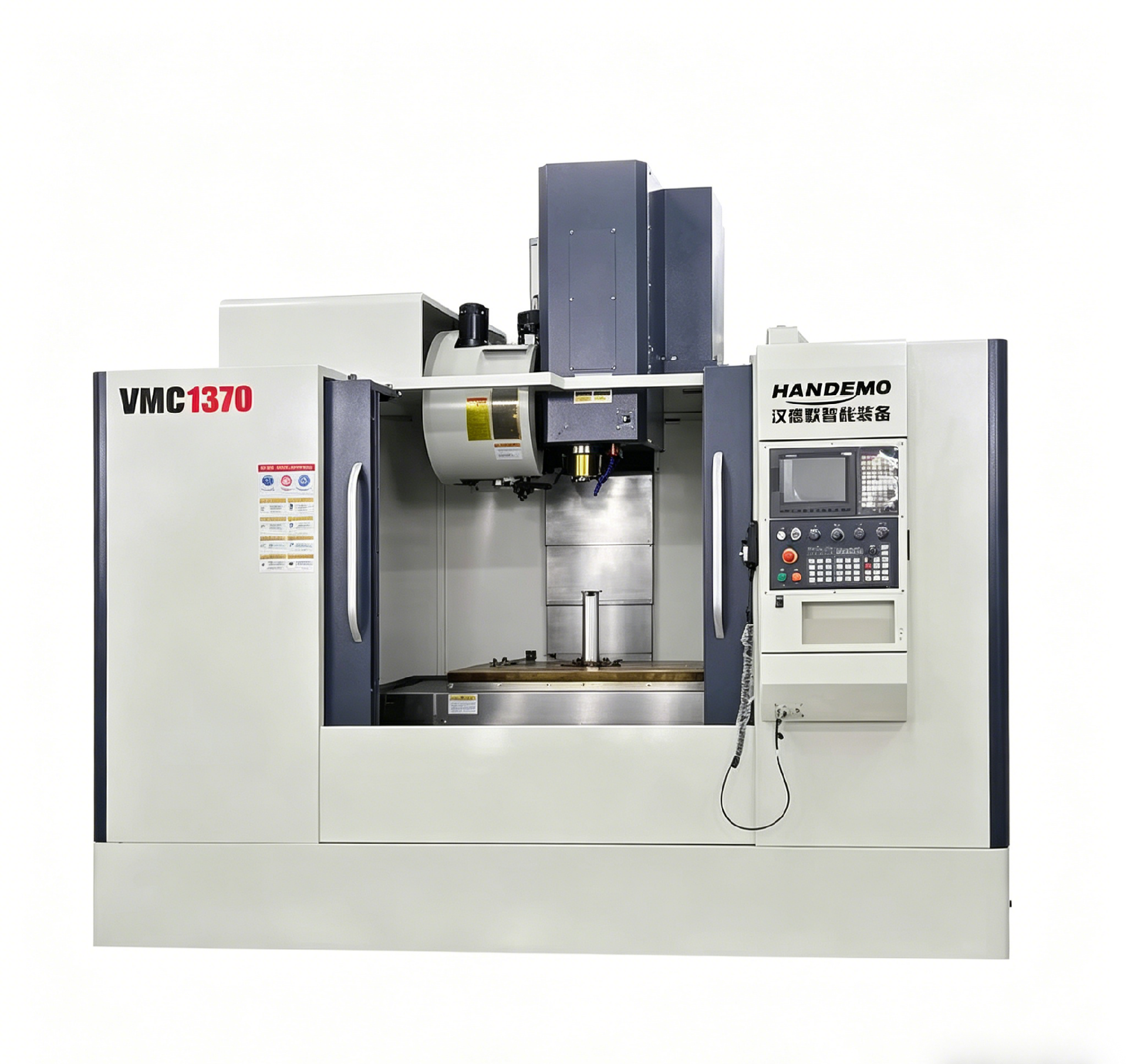

Choose the VMC1370D over the standard VMC1370 when you specialize in mold and die machining: the D package emphasizes contour accuracy, surface finish and stability for finishing passes, while keeping the same large work envelope. It is the direct answer for customers moving from small CNC mills to a serious mold-class VMC.
Primary Applications
Mold bases, cavity inserts, electrodes, die components and precision tooling for injection molds, die casting dies and stamping dies.
Product Parameters
| Specifications | VMC1370D |
| Table size （mm） | 1400×700 |
| Max. worktable load（kg） | 800 |
| T-slot (number*width*distance) | 5-18-130 |
| X-axis travel(mm) | 1300 |
| Y-axis travel(mm) | 700 |
| Z-axis travel(mm) | 750 |
| X-axis Fast shift speed(m/min) | 24 |
| Y-axis Fast shift speed(m/min) | 24 |
| Z-axis Fast shift speed(m/min) | 18 |
| Spindle taper hole | BT40-150 |
| Spindle speed (rpm) | 8000 |
| Machine size (mm) | 3550L*2730W*2620H |
| Machine weight (KG) | 9000 |
Get a Quote for Your Application
Need a CNC machine tailored to your production line? Contact Handemo CNC for a detailed quote, technical support, and fast delivery worldwide.
Contact Handemo CNC now or email sales1@handemocnc.com / WhatsApp +86 135 6320 3038.
FAQs
Frequently Asked Questions
What is the minimum order quantity for this machine?
We accept orders from 1 unit. Each machine is manufactured to order with full quality inspection, and lead time depends on the model and customization requirements. Contact our sales team for current lead times.
Can the machine be customized for my application?
Yes. Handemo offers customization including spindle options, CNC control systems (Fanuc, Siemens, GSK or others), automation integration, 4th/5th axis configurations, chip conveyors and special tooling. Tell us your workpiece requirements and we will propose the best configuration.
Do you provide installation and training?
Yes. We provide on-site installation and commissioning, operator training, and technical documentation. Remote video support is also available for troubleshooting and optimization after delivery.
What is your warranty policy?
Standard warranty covers the machine tool for 12 months from installation, including spare parts support. Extended warranty and preventive maintenance programs are available on request.
How do you ship the machine and how long does delivery take?
We export worldwide by container or break-bulk shipping with professional packing. Delivery time depends on the destination country and the model ordered. Our export team manages the full logistics process including customs documentation.
Can I visit the Handemo factory before ordering?
Certainly. Customers are welcome to visit our factory in Shandong, China for machine inspection, cutting tests and face-to-face discussion. We regularly host international customers from more than 150 countries.
