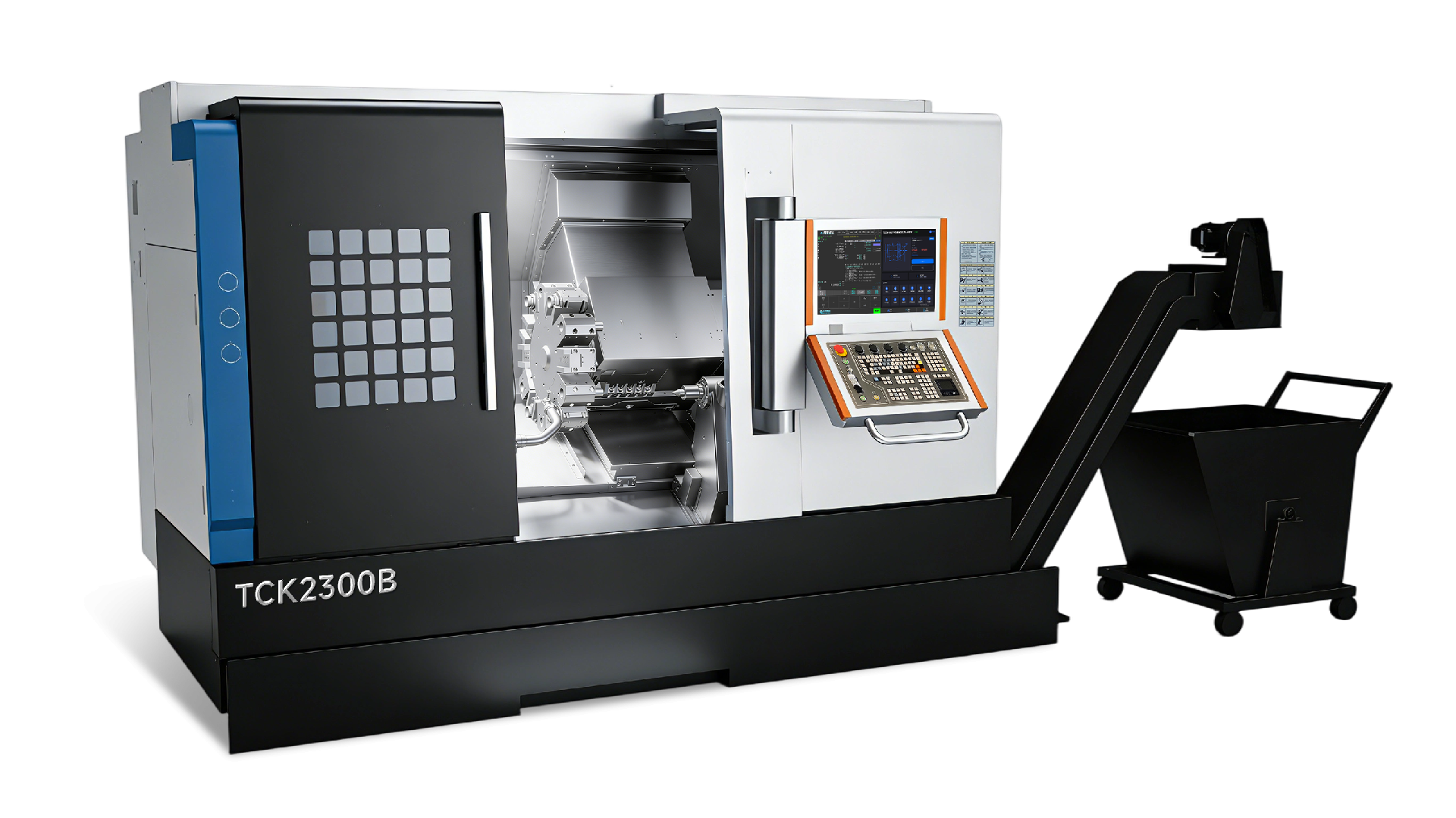

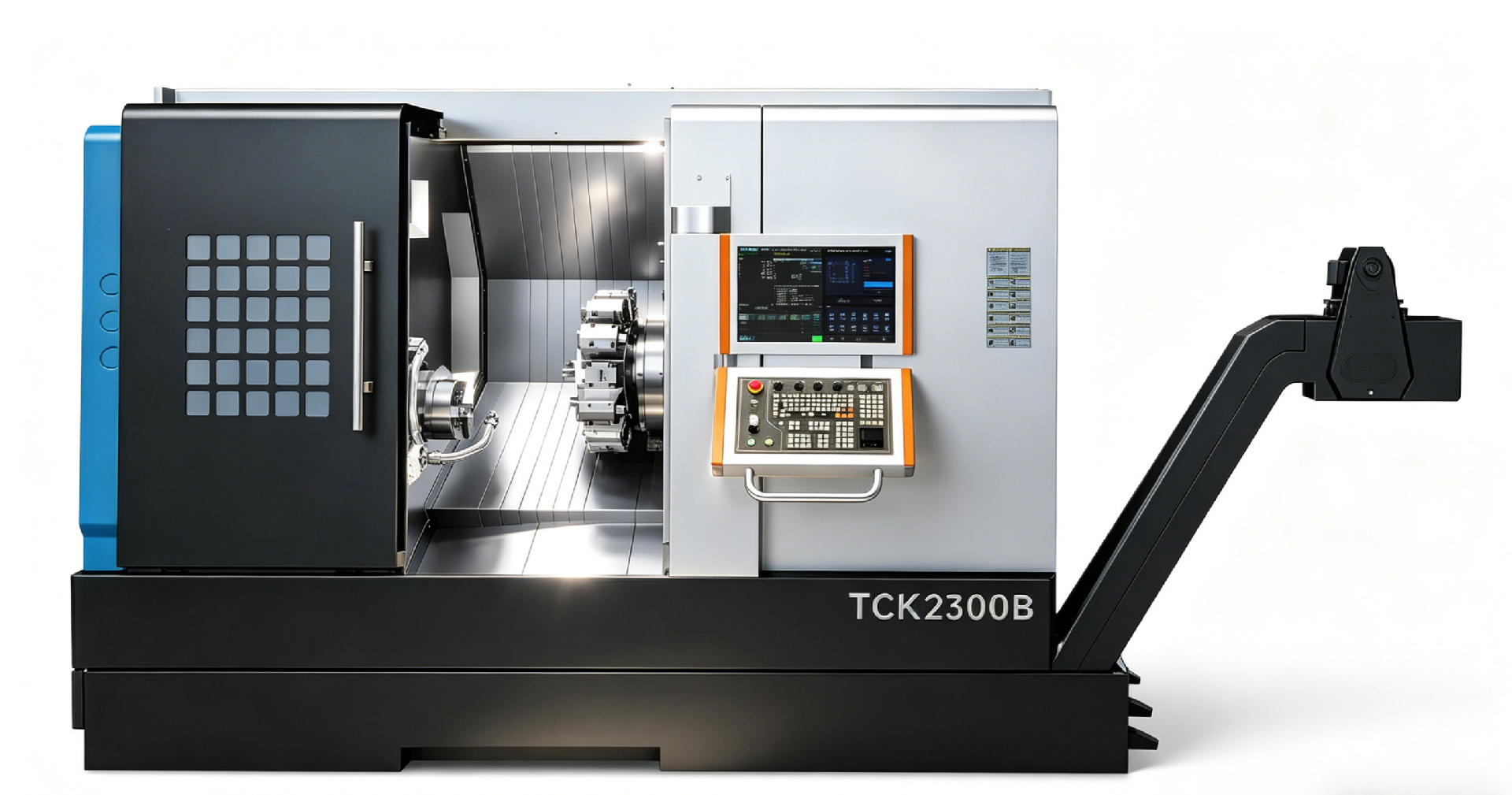

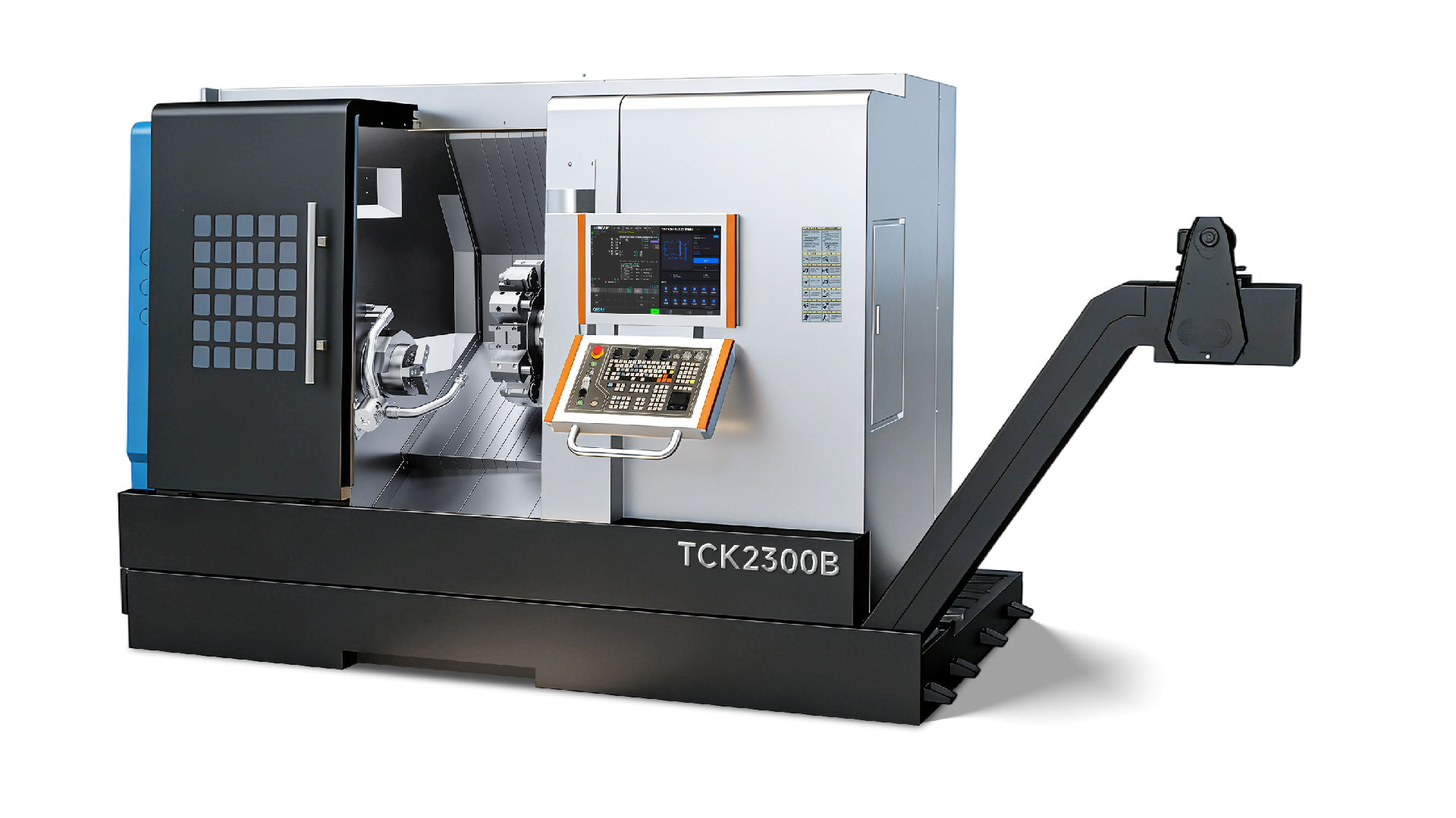

TCK2300B CNC Mill-Turn Machine

CNC Mill-Turn Machines / Y-axis Turning And Milling Combination

*Max. swing over bed 700 mm, max turning length 500 mm, max turning diameter 400 mm, max swing over cross slide 400 mm
*Spindle nose type 400, spindle bore 65 mm, max bar capacity 50 mm
*X-axis travel 240 mm, Z-axis travel 500 mm, Y-axis travel ±60 mm, X/Z rapid traverse 20/20 m/min, Y rapid traverse 10 m/min
*Standard tool post: Horizontal 12-station live tool turret

Request A Quote Download Brochure

Technical Specifications

Product Details Parameters

Product Details

Product Parameters

Speicifications	TCK2300B
Max. swing over bed(mm)	700
Max. turning length(mm)	500
Max. turning diameter(mm)	400
Max. swing over cross slide(mm)	400
Spindle nose type / code	A2-6
Spindle bore diameter(mm)	65
Max. bar capacity(mm)	50
X-axis rapid traverse(m/min)	20
Z-axis rapid traverse(m/min)	20
Y-axis rapid traverse(m/min)	10
Y‑axis travel(mm)	±60
X-axis travel(mm)	240
Z-axis travel(mm)	500
Standard tool post type	Horizontal 12‑station live tool turret

FAQs

Frequently Asked Questions

What is the minimum order quantity for this machine?

We accept orders from 1 unit. Each machine is manufactured to order with full quality inspection, and lead time depends on the model and customization requirements. Contact our sales team for current lead times.

Can the machine be customized for my application?

Yes. Handemo offers customization including spindle options, CNC control systems (Fanuc, Siemens, GSK or others), automation integration, 4th/5th axis configurations, chip conveyors and special tooling. Tell us your workpiece requirements and we will propose the best configuration.

Do you provide installation and training?

Yes. We provide on-site installation and commissioning, operator training, and technical documentation. Remote video support is also available for troubleshooting and optimization after delivery.

What is your warranty policy?

Standard warranty covers the machine tool for 12 months from installation, including spare parts support. Extended warranty and preventive maintenance programs are available on request.

How do you ship the machine and how long does delivery take?

We export worldwide by container or break-bulk shipping with professional packing. Delivery time depends on the destination country and the model ordered. Our export team manages the full logistics process including customs documentation.

Can I visit the Handemo factory before ordering?

Certainly. Customers are welcome to visit our factory in Shandong, China for machine inspection, cutting tests and face-to-face discussion. We regularly host international customers from more than 150 countries.
