Recommended Large Turn

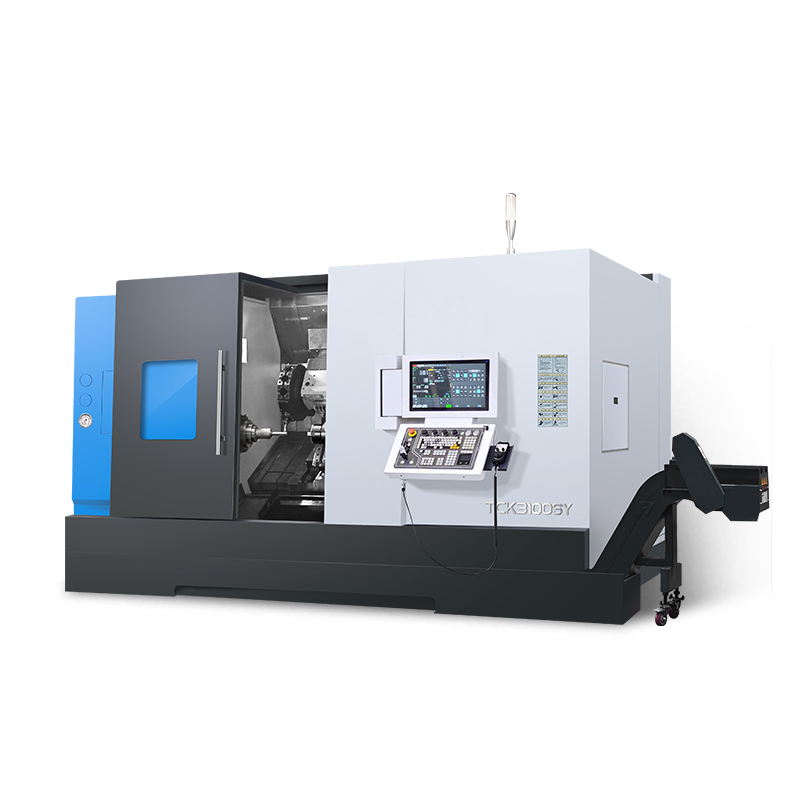

for machining large, complex workpieces, the Handemo TCK3100SY dual spindle turn-mill with virtual Y-axis stands out as a cost-effective, high-performance solution. Designed for heavy-duty applications, this machine replaces multiple conventional tools, reduces floor space, and slashes production time.
Massive Capacity for Oversized Parts
Swing diameter: 750mm
Cutting diameter: 500mm
Cutting length: 1000mm
X/Z travel: 400mm / 1050mm
Y-axis travel:
Ideal for heavy truck components, wind power flanges, and mining machinery – no more segmented processing.
Dual Spindle – Precision & Efficiency Equipped with a powerful A2-8 main spindle and A2-8 secondary spindle (dynamic alignment accuracy ), the TCK3100SY enables smooth workpiece transfer, eliminating multiple clamping errors. The innovative upper-swing structure + virtual Y-axis interpolation completes turning, milling, drilling, boring, tapping, and gear hobbing in one setup. Process steps reduced by 80%, efficiency up by 60%.
Milling Power Comparable to a Machining Center Customized BMT65 large turret with 7.5kW spindle motor – milling capability matches a 855 VMC. Easily handles hardened steel, forged parts, deep holes, and side cavities. The triple-tooth locking ring ensures chatter-free heavy cutting, and tool life extends 30% longer.
Not sure which model fits your workload? Our engineers answer technical questions every day, and you can reach us through the contact page with your part drawings.
Smart Features – Lower Operator Burden
One‑click mirror programming: sync main spindle program to sub‑spindle instantly, boosting programming efficiency by 80%.
Anti‑collision zone: automatically identifies risky operations and prevents crashes – ideal for less experienced operators.
If you are comparing options, take a look at our CNC slant bed lathes and the specifications we publish there.
Exceptional ROI – One Machine Does It All Traditionally you would need: a 63 slant lathe (60k),50slantlathe(30k), gantry loader (15k),855VMC(30k), and 5 operators. The Handemo TCK3100SY replaces all of them. Save over 60% floor space, reduce labor costs significantly, and achieve a short payback period.
Brand You Can Trust Backed by Handemo’s deep expertise in turn‑mill technology, we provide on‑site installation, free training, and 24/7 rapid support.
The Handemo TCK3100SY is the benchmark for large complex part machining – helping SMEs produce more with less investment.
If you are evaluating a CNC machine for your shop, talk to our engineers first. Send us your workpiece drawings and production targets, and we will recommend the right model with a clear quotation. Email sales1@handemocnc.com or contact our team for a fast reply.
Choosing the Right CNC Lathe
When selecting a CNC lathe, consider the workpiece size, material, batch volume, and tolerance requirements. Slant bed lathes offer good rigidity and chip evacuation, while turn-mill centers add milling capability for complex parts in a single setup.
Key parameters to evaluate include maximum turning diameter, spindle speed and power, turret capacity, and axis travel. Matching the machine to your actual production mix is the fastest way to improve utilization and return on investment.
Frequently Asked Questions
What is the difference between a slant bed and flat bed lathe?
Slant bed lathes offer better rigidity, easier chip removal, and higher precision, making them ideal for heavy and precision turning.
Get a Quote for Your CNC Machine
Tell us about your workpiece and production requirements, and our engineers will recommend the right machine with a detailed quotation. Contact Handemo CNC or email sales1@handemocnc.com / WhatsApp +86 135 6320 3038.
Choosing the Right CNC Lathe
When selecting a CNC lathe, consider the workpiece size, material, batch volume, and tolerance requirements. Slant bed lathes offer good rigidity and chip evacuation, while turn-mill centers add milling capability for complex parts in a single setup.
Key parameters to evaluate include maximum turning diameter, spindle speed and power, turret capacity, and axis travel. Matching the machine to your actual production mix is the fastest way to improve utilization and return on investment.
