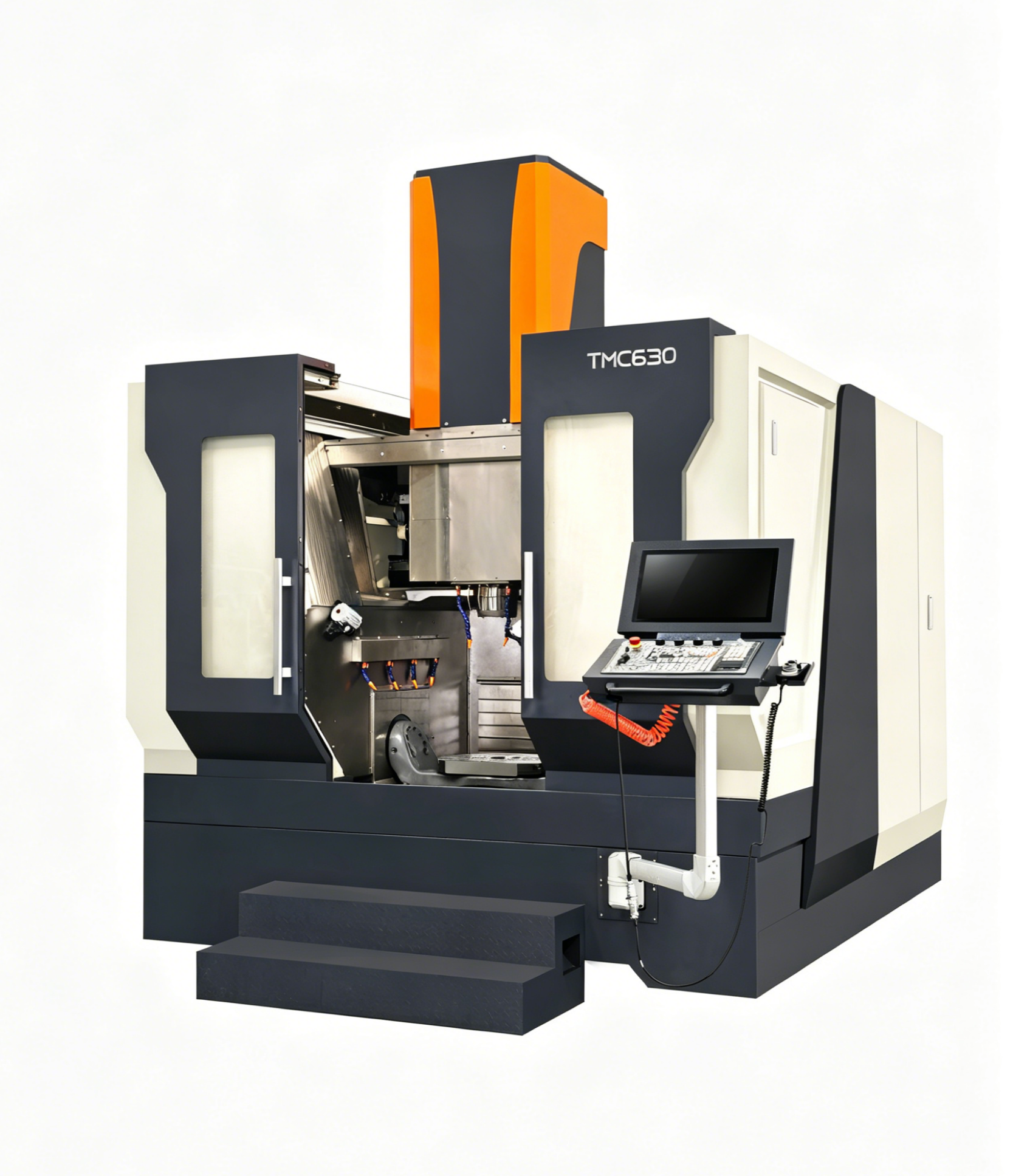

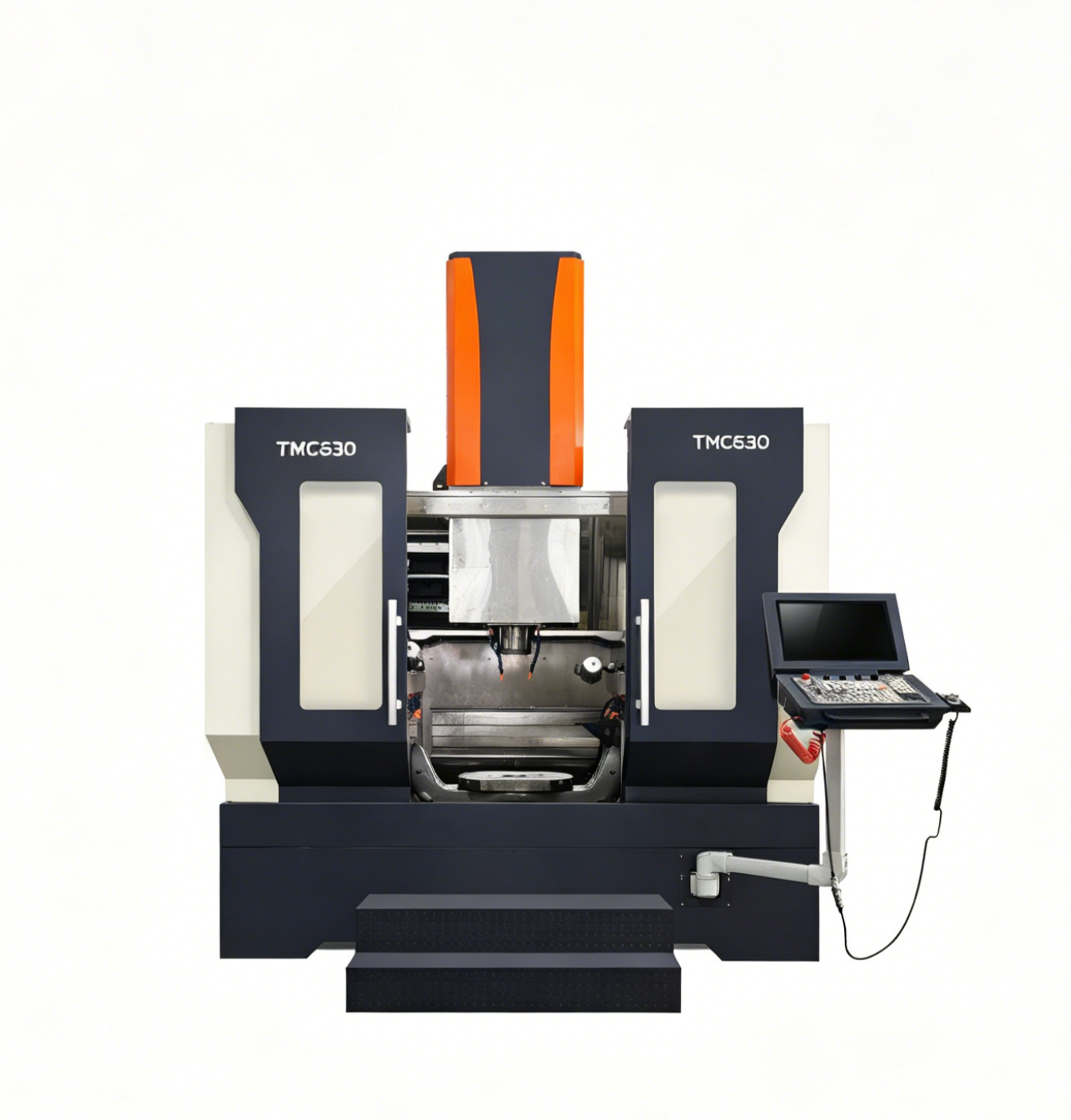

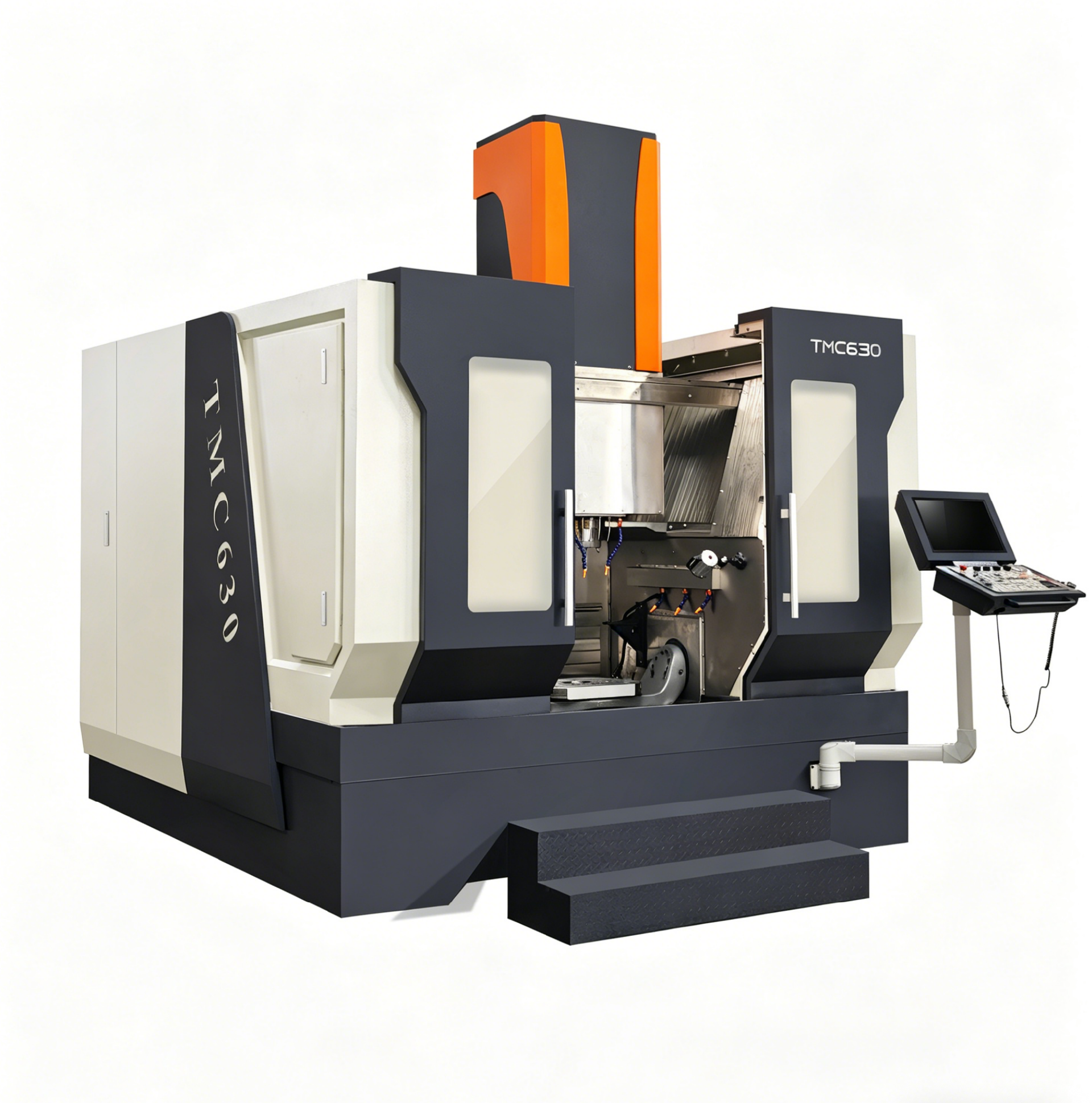

TMC630 5-Axis Turning and Milling Machine

5-Axis Turning and Milling Machine / High-Speed Precision Overhead Crane

*X/Y/Z axis travel: 700/350+590 (including tool change stroke)/550 mm, A-axis tilt range ±110°, C-axis rotation 360°
*C-axis rotary table diameter 650 mm, allowable load 500 kg, C-axis maximum speed 400 rpm, A-axis maximum speed 100 rpm
*Spindle taper HSKT63, max spindle speed 15000 rpm

Request A Quote Download Brochure

Technical Specifications

Product Details Parameters

Product Details

Product Parameters

Speicifications	TMC630
X-axis travel(mm)	700
Y-axis travel(mm)	350 + 590 (including tool change stroke)
Z-axis travel(mm)	550
A-axis tilt range(deg)	±110°
C-axis rotation range	360°
Rotary table (C-axis) Table diameter(mm)	650
Rotary table (C-axis) Permissible load(kg)	500
Rotary table (C-axis) Max speed(rpm)	400
A-axis Max speed(rpm)	100
Spindle taper	HSKT63
Max. spindle speed(r/min)	15000
Machine weight (T)	11
